MARMOX Multiboard
Unique Innovation which pays back
No. 1 in the world – Cement Reinforced Strongest Construction Board
The all-in-one solution for insulation and waterproofing.
Marmox Multiboard is the all-in-one solution for insulation, waterproofing, and dry lining. It is lightweight, easy to cut to size and can be applied to floors, walls and ceilings as a surface ready for tiles or plaster.

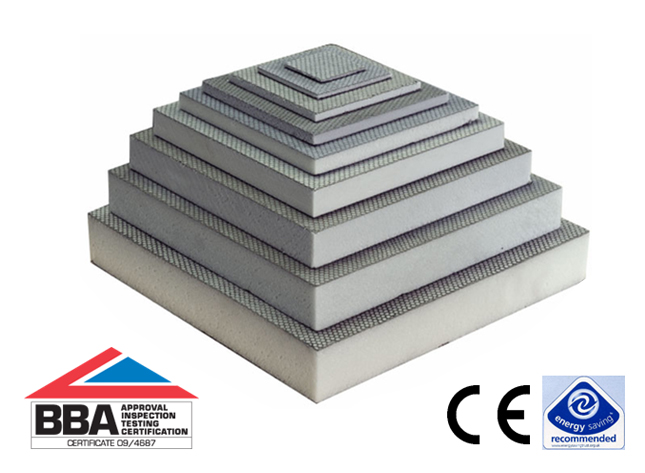

There are various thicknesses available ranging from 4mm to 100mm and this gives the Multiboard many uses from external insulation envelop for buildings, lining walls, floors and ceilings to constructing vanity units and steam benches. With Curved Multiboard any feature-defining curve can be created.
Main Features:
- Highly insulating
- Fully waterproof
- Fix to solid wall / timber
- Ready to tile or plaster
- Holds 62 kg/sqm on walls
- 30 tons/sqm on floors
- Light weight to handle
- Easy to cut
What is Marmox Multiboard made of?

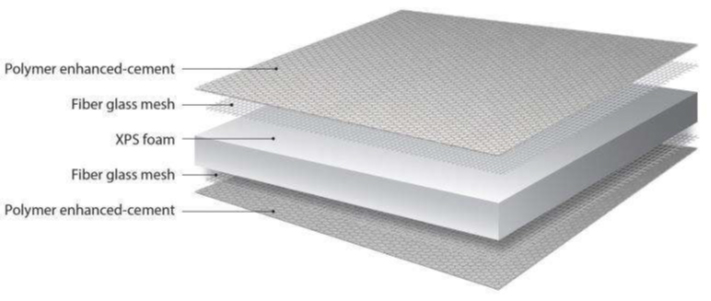

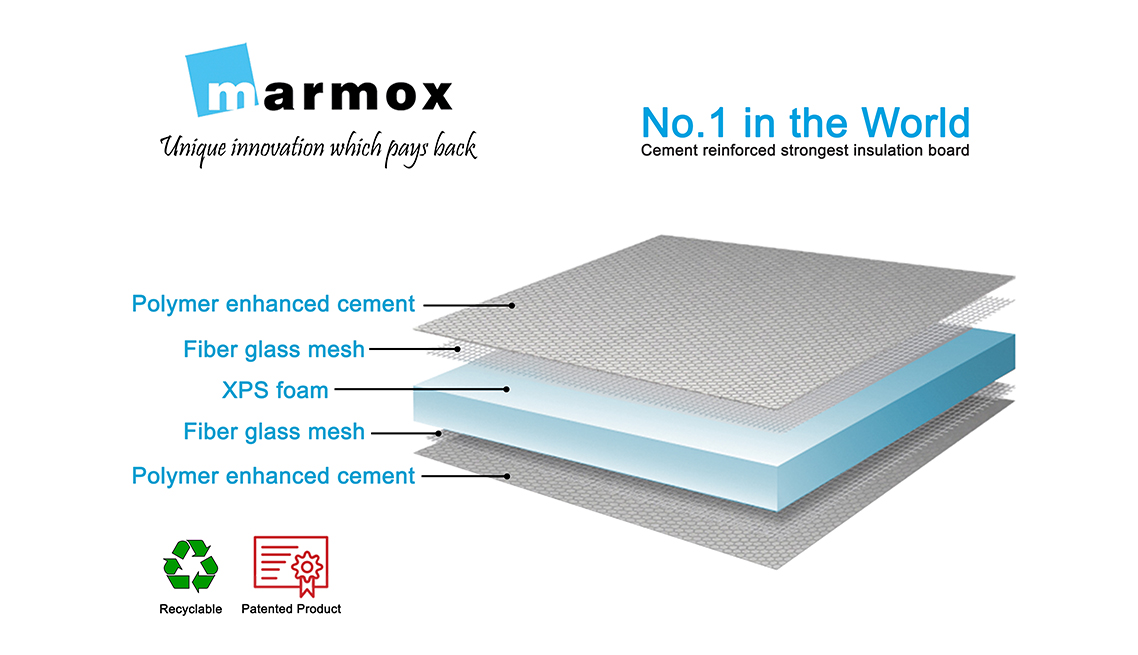

Marmox Multiboard comprises a core of XPS. This is not the white type of polystyrene commonly used for packaging, it is a closed cell structure known as extruded polystyrene that will not allow water or water vapour to pass through it. The surface is coated on either side with a thin but robust layer of fiberglass reinforced polymer cement. This layer provides the perfect level of porosity to bond with tile adhesive and plaster.
XPS (extruded polystyrene) is one of the most effective insulation materials available and also has the benefit that its thermal insulation properties are not affected whatsoever by wet or damp conditions.
High strength
Multiboard can hold a tile weight of 62kg per square meter, double that of standard lining board and with a high compressive strength of 30 tons/m2 Multiboard can be used on virtually any tiled floor.
Quality
All Marmox production is subject to the controls of ISO9001 and because our products are used globally they also conform to all European, United States and International standards where appropriate. For the UK market, Marmox Multiboard is BBA certified as a tile backer board, CE marked as an insulation board and recommended by the Energy Saving Trust. All Marmox products are guaranteed for ten years.
Marmox MULTIBOARD
When building, or renovating your home the use of tiles, marble or mosaic provides it with a personal touch, adding to its beauty. Much attention is paid to a careful choice of colors, dimensions and the installation itself. However, all those efforts could prove in vain if stress from outside (such as temperature changes, sun, frost, moisture or mechanical stress) cause the delamination of the tile adhesive, destroying the sub construction.
“It’s what’s underneath that counts.” Being strong, Heat insulating and light, Marmox Board can be used as a structural element in the floor or wall.
Marmox Multiboard can be used for all types of interior and exterior applications.
Where Marmox Multiboards are used?
- Marmox Exterior Thermal Insulation System (METIS)
- Car Park Ceiling Insulation
- Roof Insulation System
- Drylining & Partitioning
- Flooring underlay boards
- Wall cladding and Tile backing
- Steam and Sauna Rooms
- Hammams
- Pipe coverings
- Toilet Boxes
- Bath surrounds
- Bathroom Elements
- Under floor Heating
Types of Marmox Boards:
- Marmox board Standard
- Marmox board Standard HD1 (Heavy Duty)
- Marmox board -VBR (Vapor breathable boards)
- Marmox board -VBR HD1
- Marmox Jagged Board
- More strength thanks to the extra bond between the cement mortar and the reinforcing fiber glass mesh
- Better adhering properties
- Better water proofing
Characteristics
- High compressive strength (withstands 30 t/m2) at 10% deflection
- Rigid
- Very good water proofing properties
- Excellent heat insulation
- Easy to cut with a knife or saw
- Extruded polystyrene closed cell structure
- Light weight
- Marmox is environmentally friendly, it is CFC and HCFC free
